Materials
>
Neodymium Iron Boron Bonded
Print
|

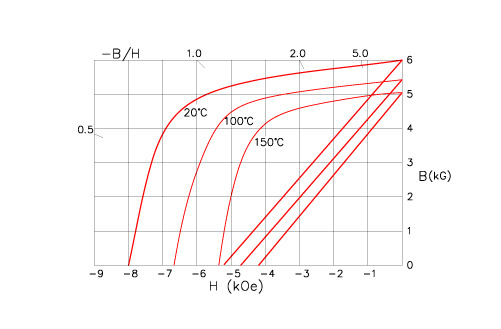

Printable BH Curve [PDF]
BN0865
Magnetic Component Engineering
SAE AS9100D AND ISO 9001:2015 CERTIFIED
Neodymium Iron Boron Bonded
/
BN0865
Material Properties
Nom.
Min.
Br (Gauss)
6,000
5,700
Hc (Oersted)
5,000
4,700
Hk (Oersted)
N/A
N/A
Hci (Oersted)
10,000
8,000
BHmax (MGOe)
6.0
5.5
Temp Coeff of Br (%/°C)
-0.12
N/A
Recoil Permeability (µrec)
1.2
N/A
Tc, Curie Temperature (°C)
350
N/A
Maximum Operating Temperature (°C)
150
N/A
Physical Properties
Density (Ibs/in3)
0.21
Coeff of Linear Expan. ⊥ to < M > (10-7/°C approx)
N/A
Coeff of Linear Expan. // to < M > (10-7/°C approx)
N/A
Compressive Strength (psi x 103)
N/A
Young’s Modulus (psi x 106)
N/A
Vicker’s Hardness (HV)
N/A
Tensile Strength (psi x 106)
N/A
Flexural Strength (psi x 106)
N/A
Common Industry Name
N8, Bonded Neo
Electrical Resistivity (μΩ.cm)
N/A
Typical Appearance
Gray
Type
